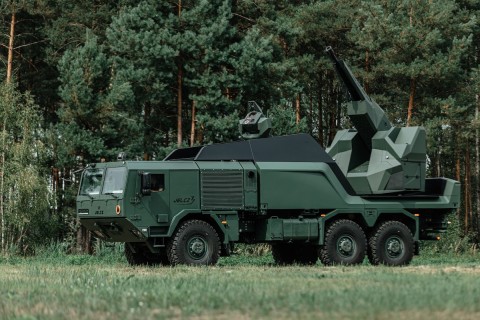

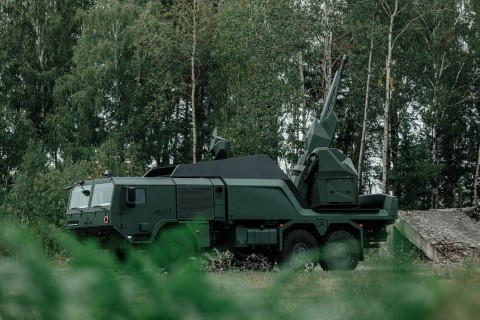

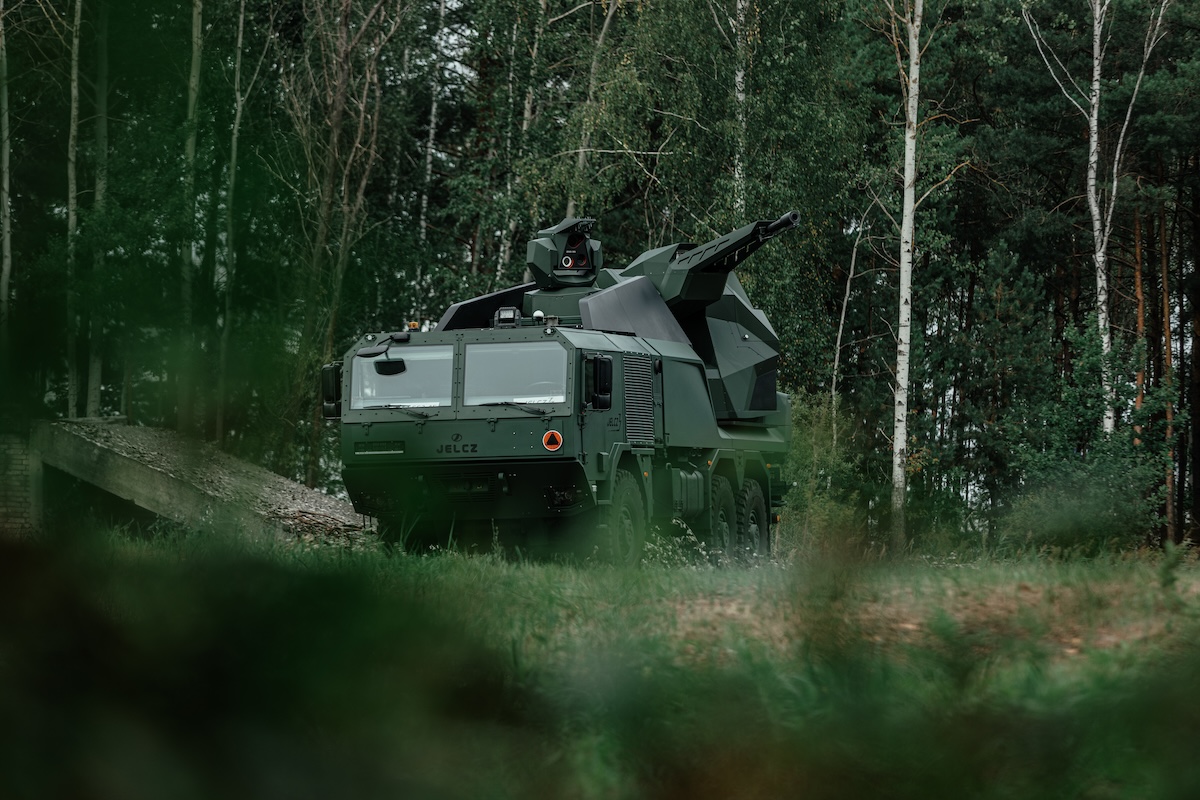

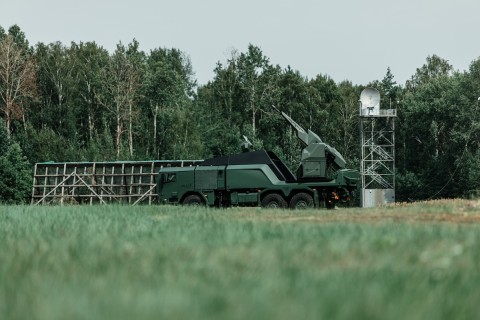

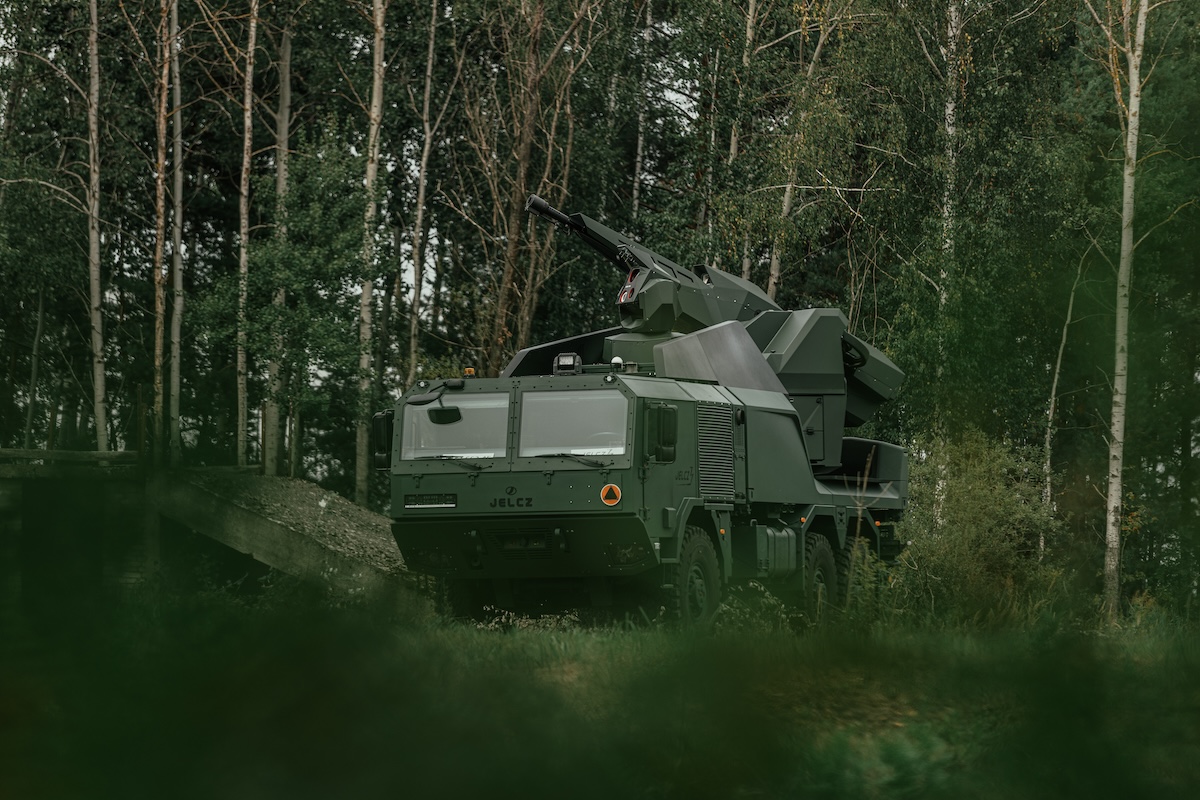

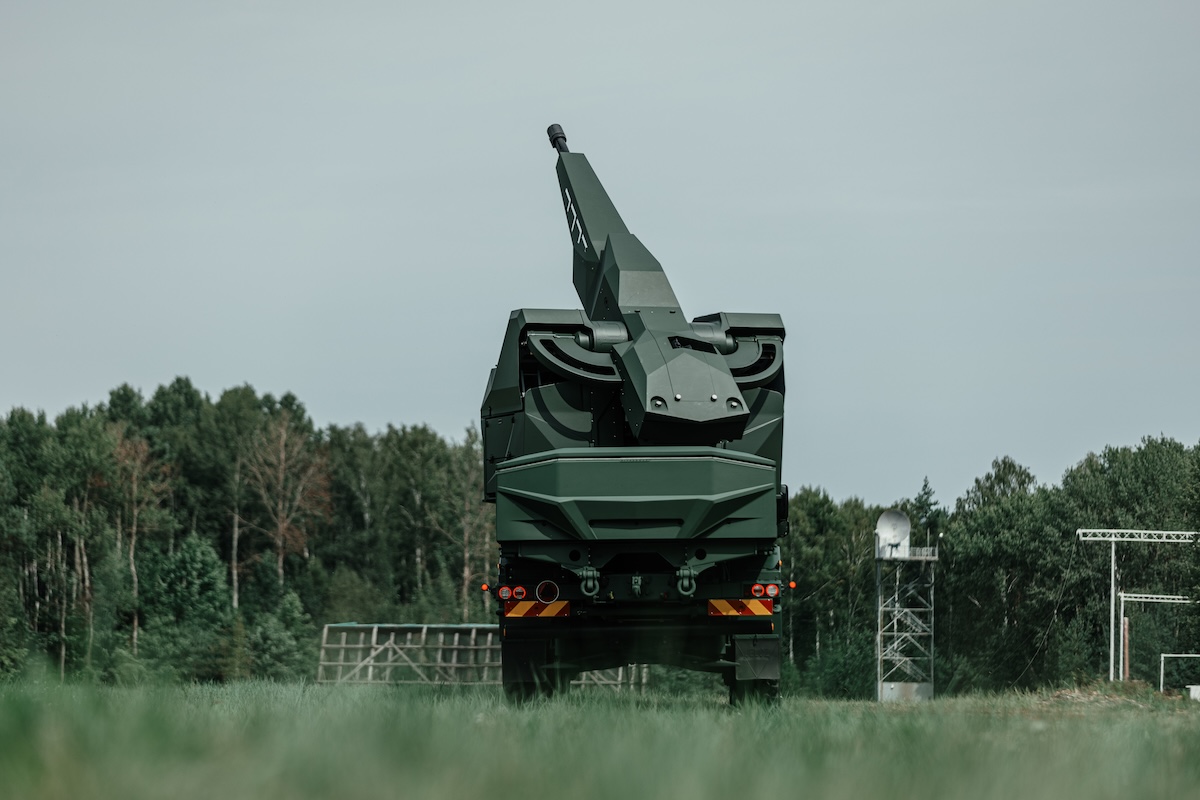

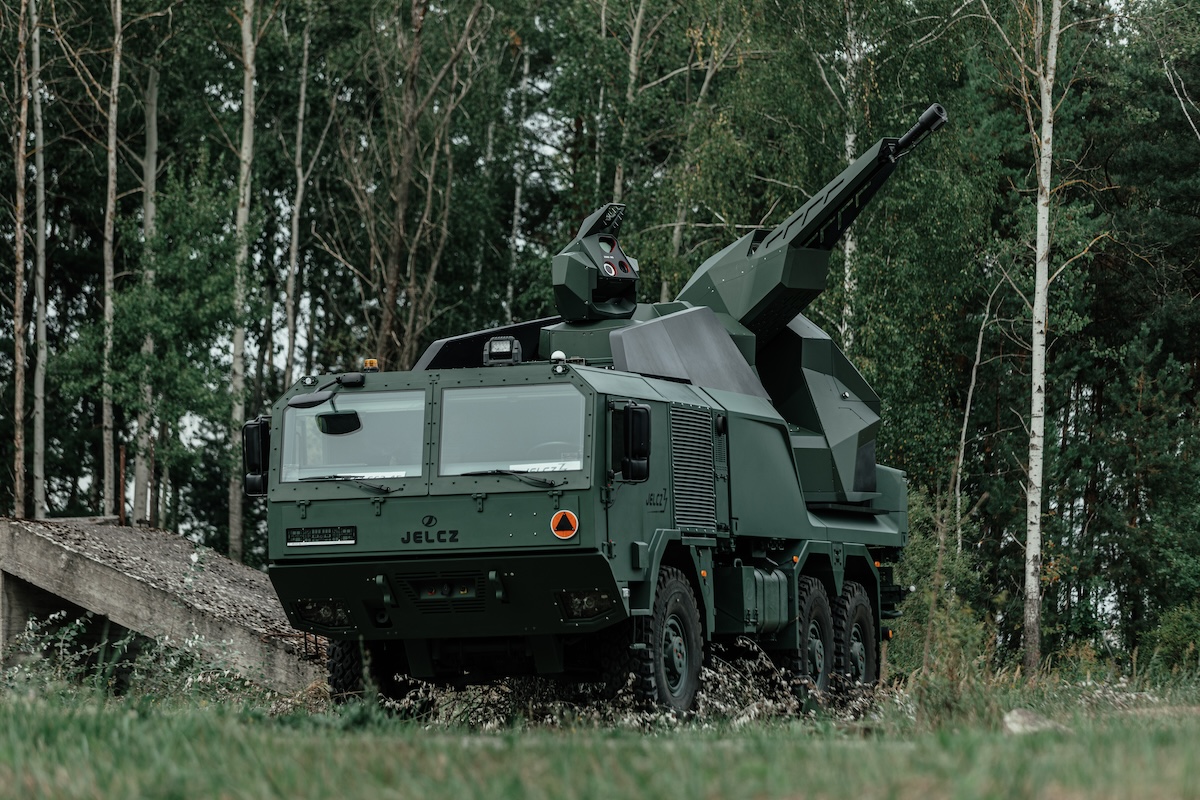

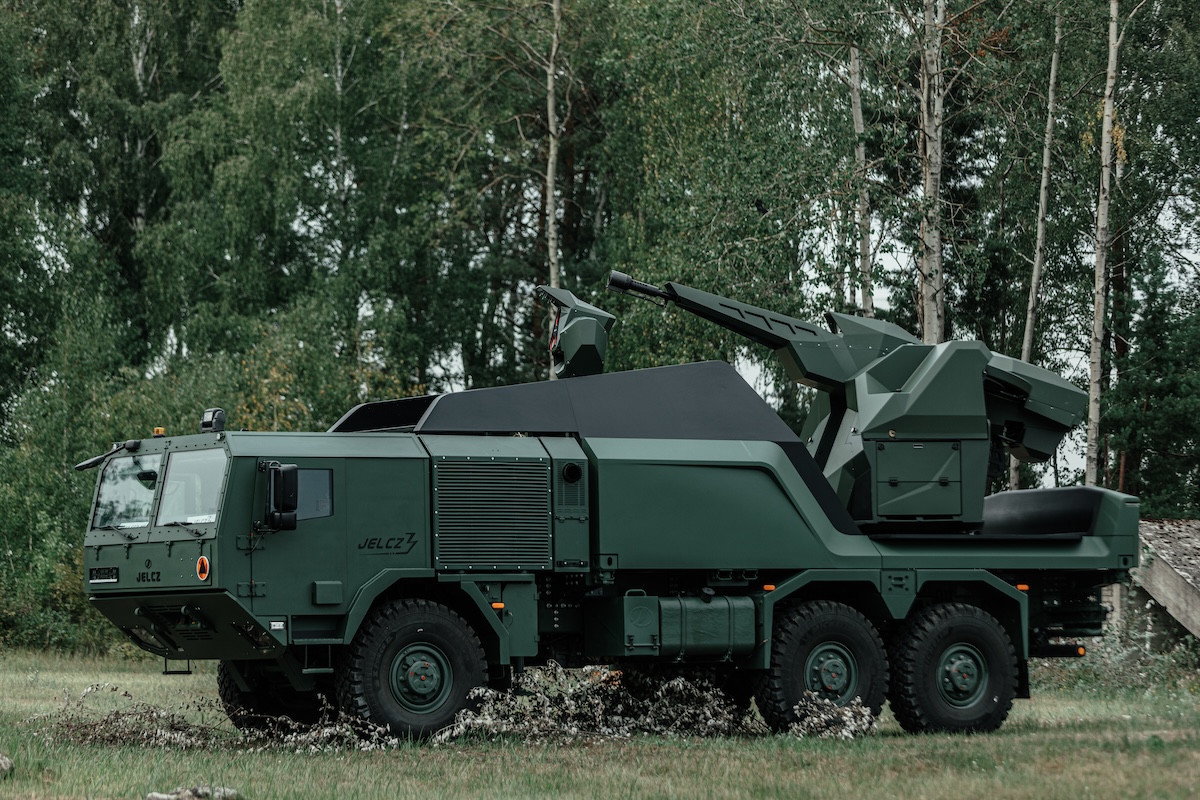

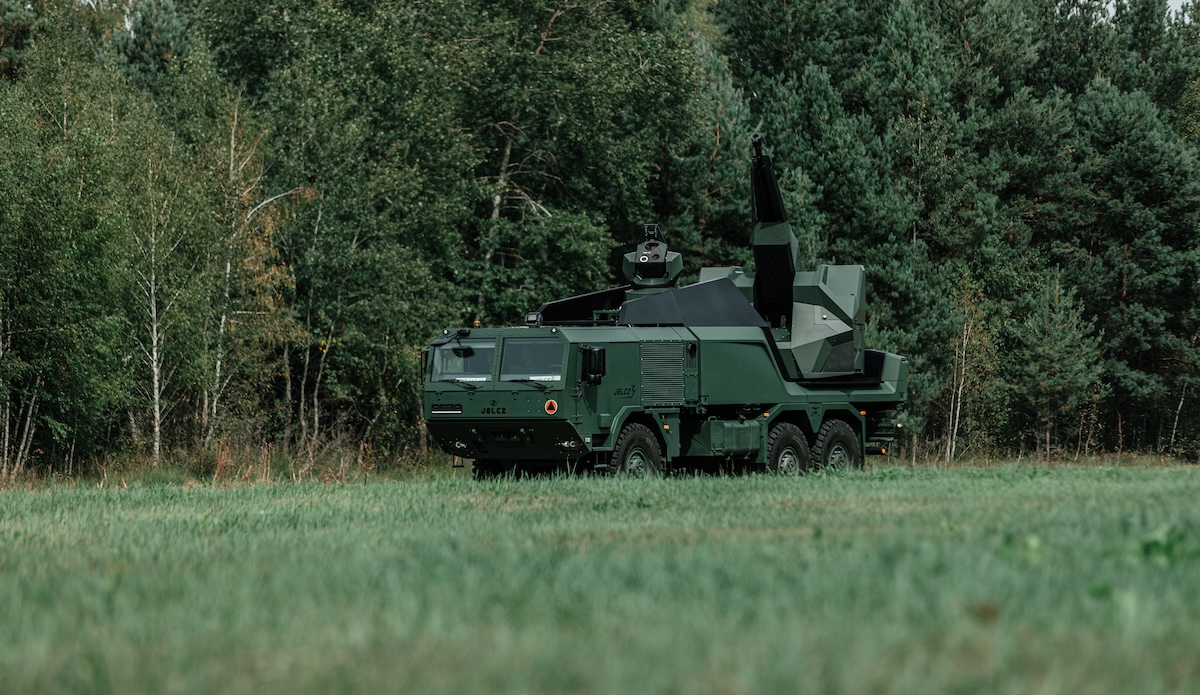

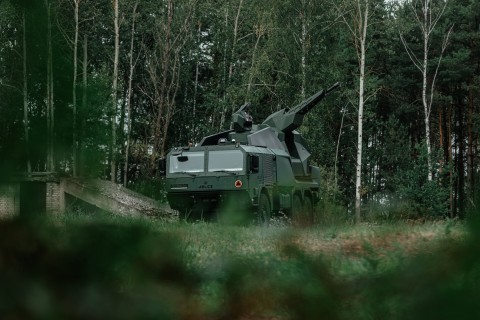

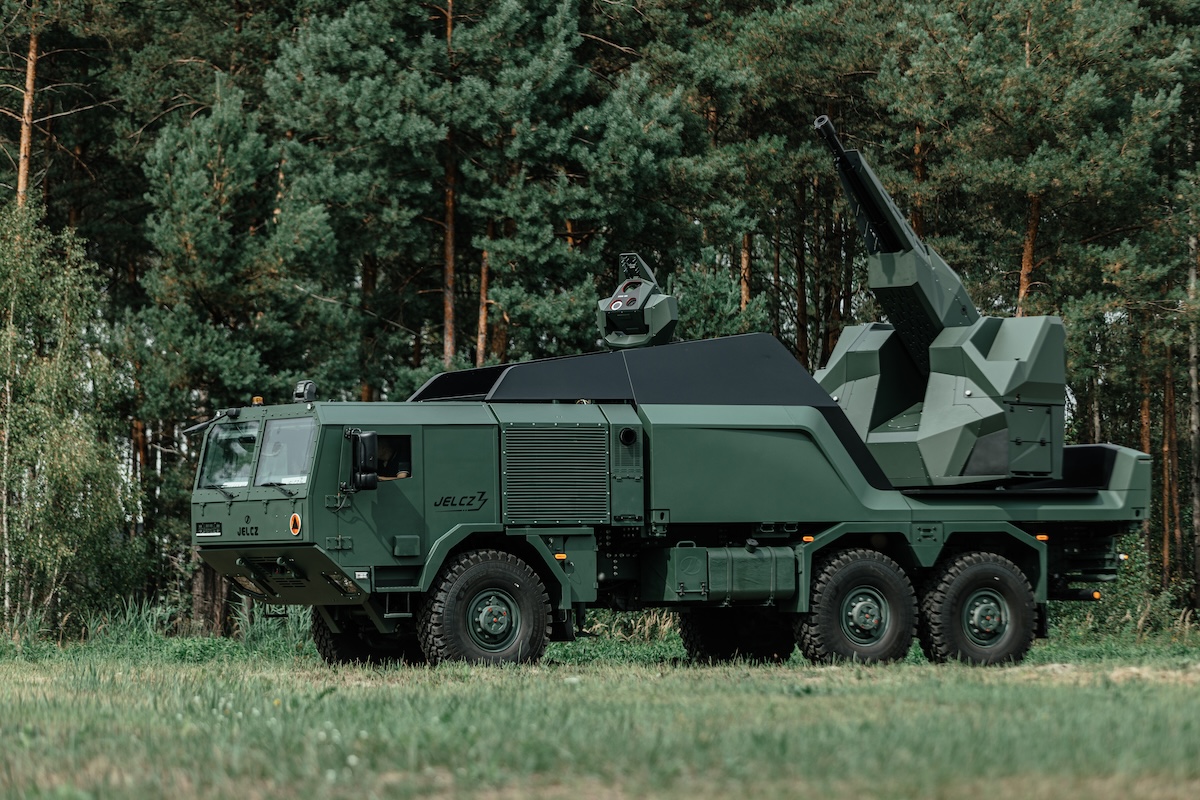

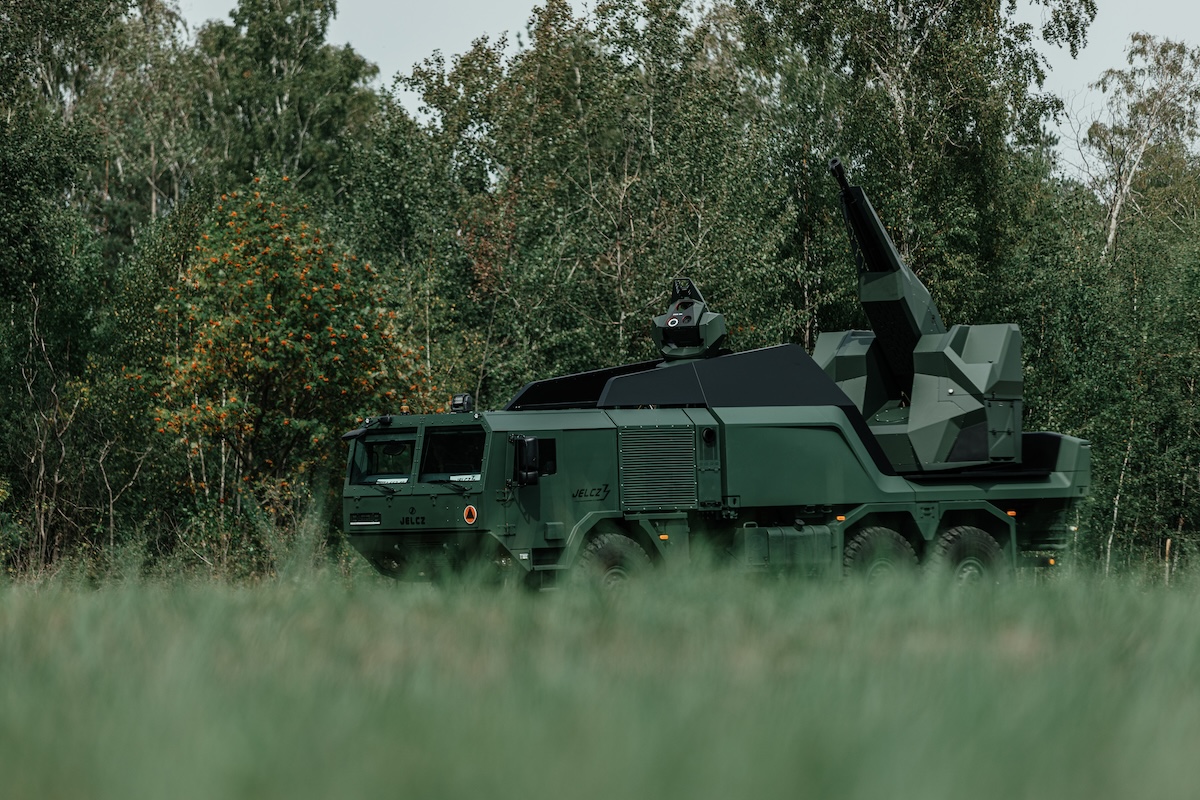

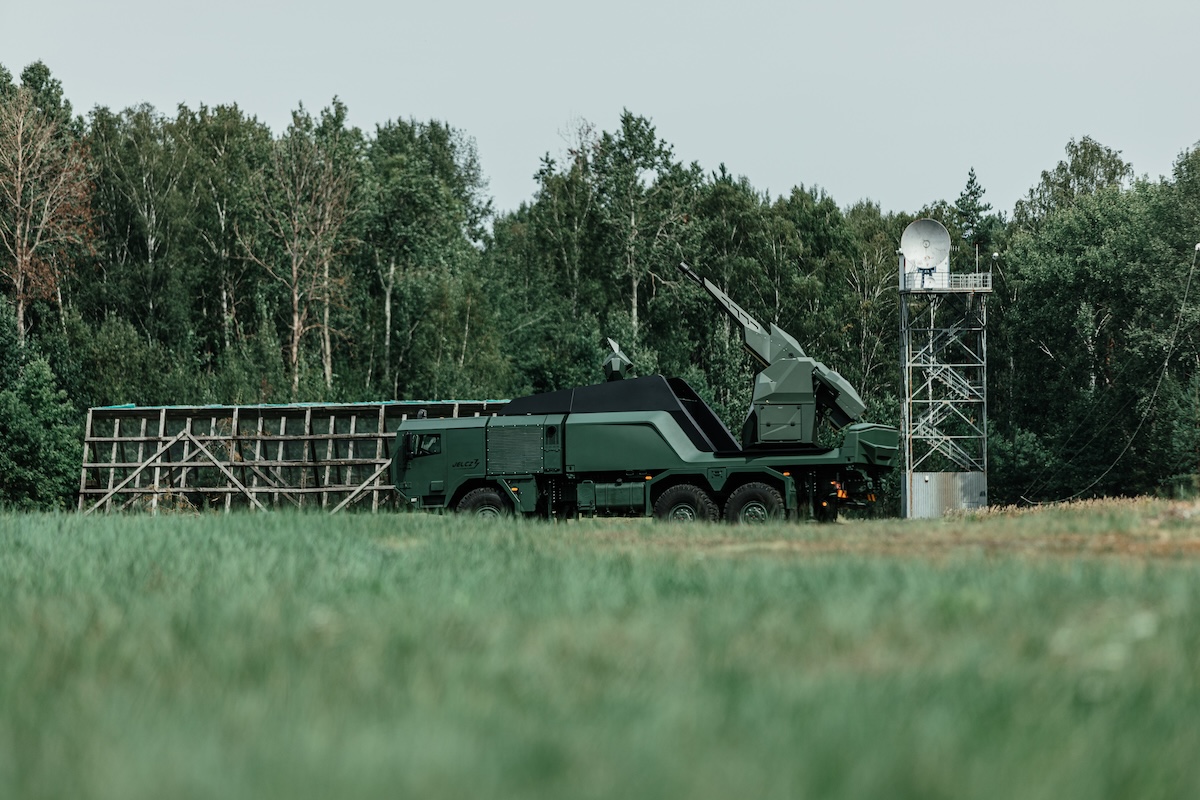

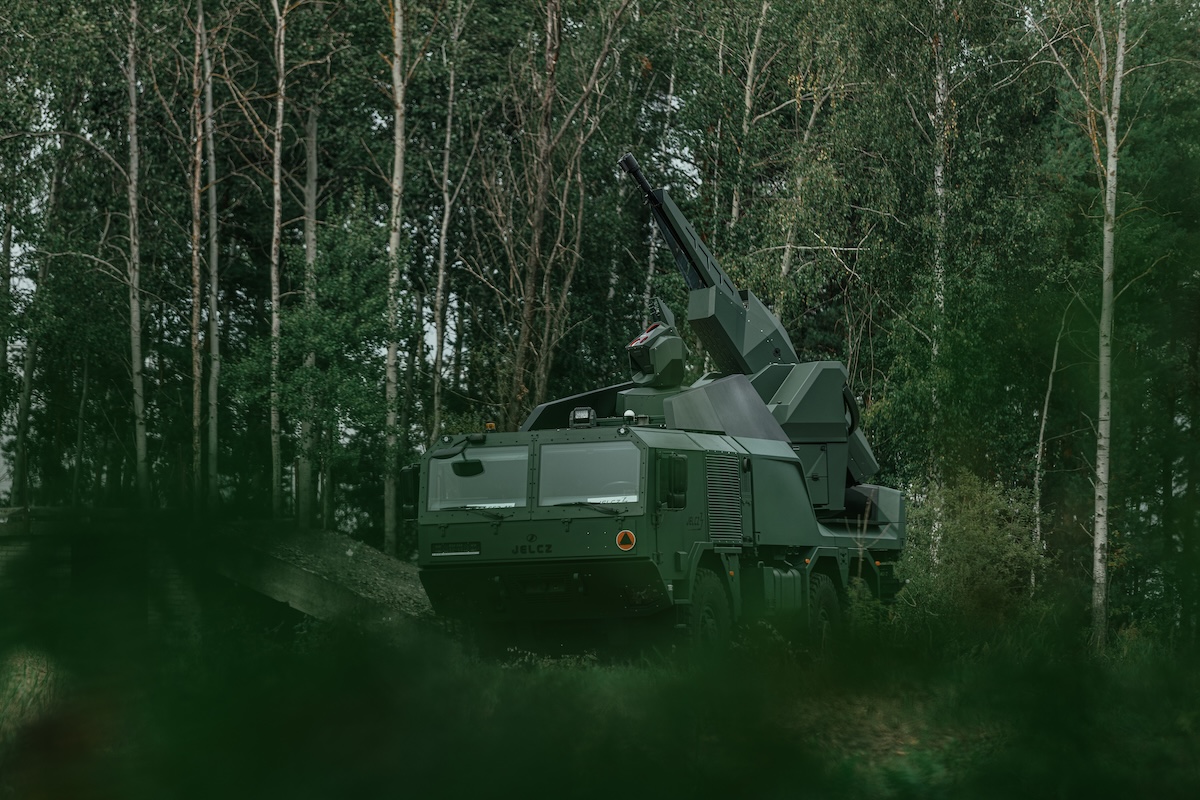

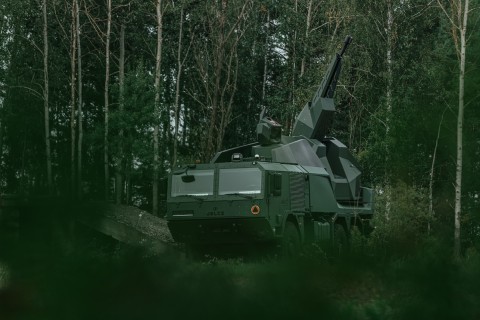

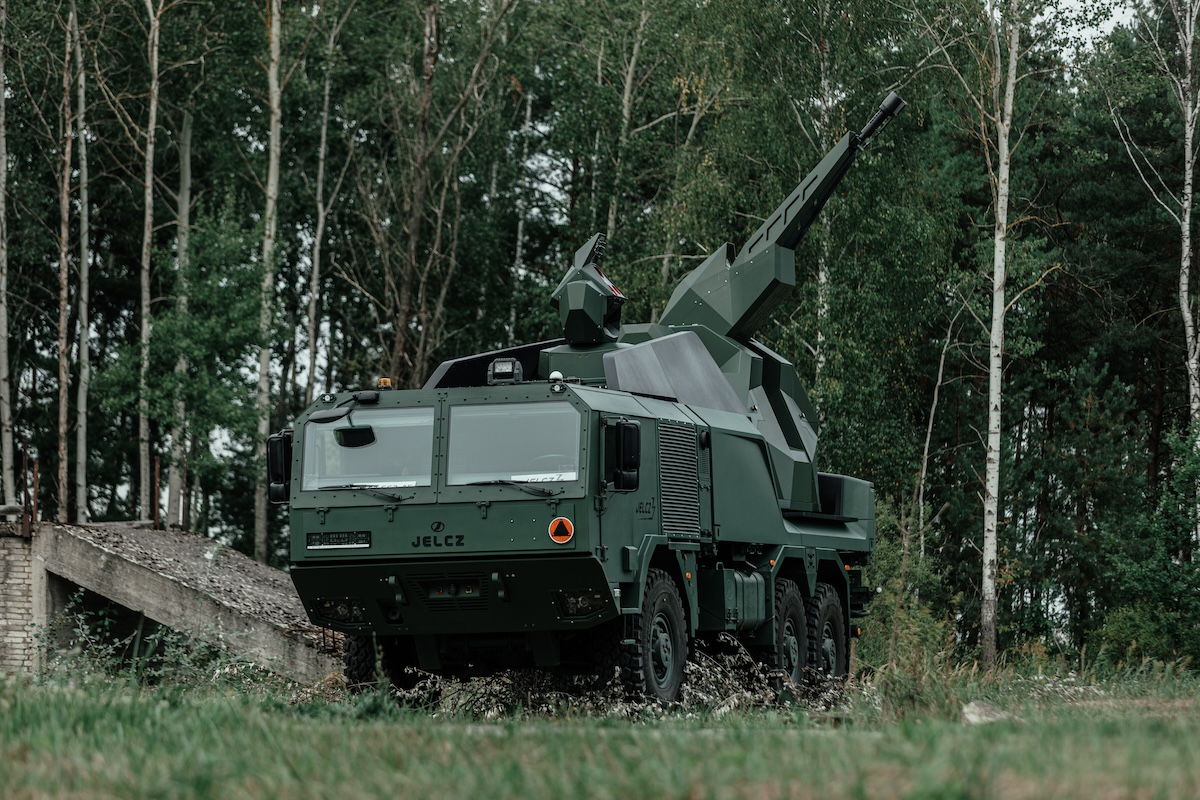

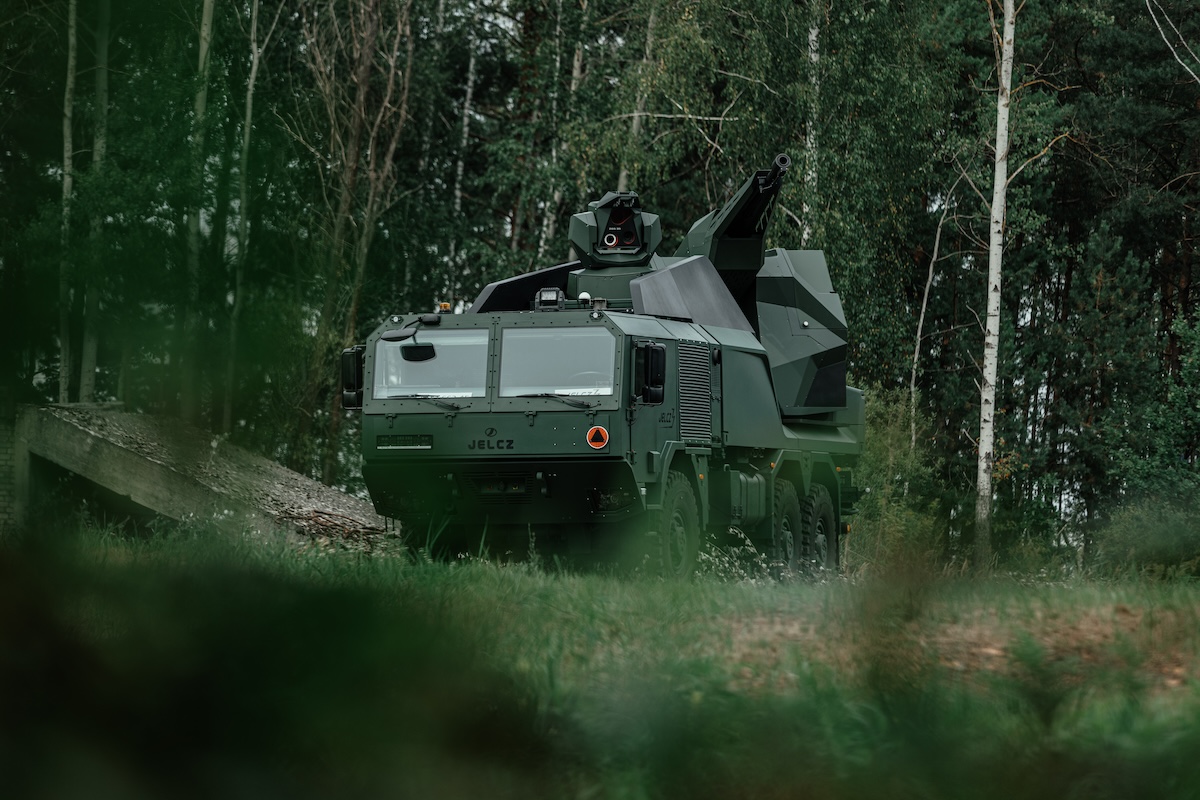

SELF-PROPELLED GUN SYSTEM SA-35MM

State of the art combination of AM-35mm superior fire power, integrated with programmable munition system, an independent optoelectronic target tracking system ZGS-35, Hybrid Fire Control System with Tuga radar and optoelectronic sensors, as well as a highly mobile third-generation 6x6 JELCZ platform. Developed for a dynamic change of a combat position with an intention to engage winged and rotary aircrafts, cruise missiles and UAV’s.
State of the art combination of AM-35mm superior fire power, integrated with programmable munition system, an independent optoelectronic target tracking system ZGS-35, Hybrid Fire Control System with Tuga radar and optoelectronic sensors, as well as a highly mobile third-generation 6x6 JELCZ platform. Developed for a dynamic change of a combat position with an intention to engage winged and rotary aircrafts, cruise missiles and UAV’s.

Why our gun system?

  • Developed for dynamic change of combat position, enabling effective short-term anti-aircraft defense of stationary strategic assets, troop concentrations and mobile units
  • Innovative combination of superior AM-35 fire power, integrated observation and tracking head ZGS-35 and highly mobile third-generation JELCZ platform with 6x6 propulsion system
  • Provides defense against wide spectrum of air targets performing course, speed and altitude maneuver in the fire zone

Benefits

Battlefield effectiveness and efficiency

  • High performance (high precision, massive firepower, fast reaction times, high reliability, high rate of fire)
  • Versatile air defence solution (effective against a wide spectrum of air targets)
  • Useful for short-term protection of strategic assets and troop concentrations
  • Remarkably effective against low cost, small and very small targets (i.e. Kamikaze UAV)
  • Compatible with Polish Air Defence Systems
  • Capable of autonomous target engagement

Simple handling and maintenance

  • Remote control
  • High level of automation
  • Fast reload and fire out of two ammo types

Easy deployment

  • High mobility (tactical and strategic)
  • Fast mission readiness
  • No manual alignment required

Sustainability

  • Cost-efficient solution (cost-optimized)
  • Reduction in logistics and personnel
  • Low life-cycle costs
  • Relying on proven solutions and acquired experience

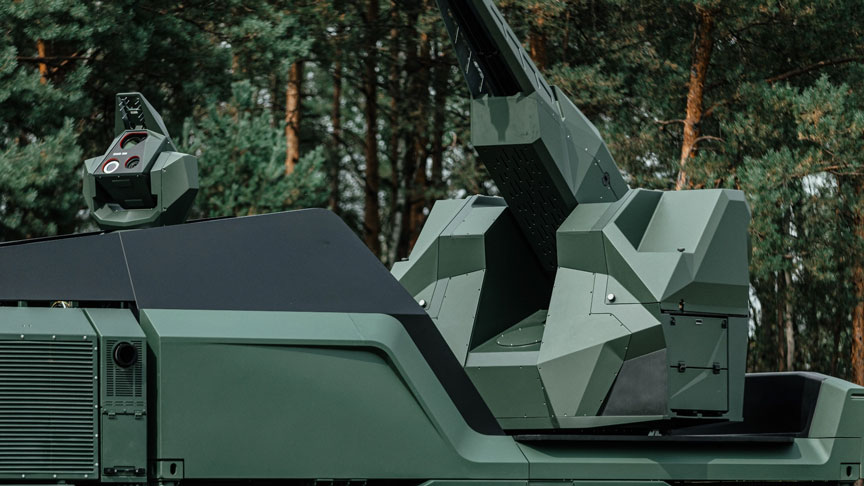

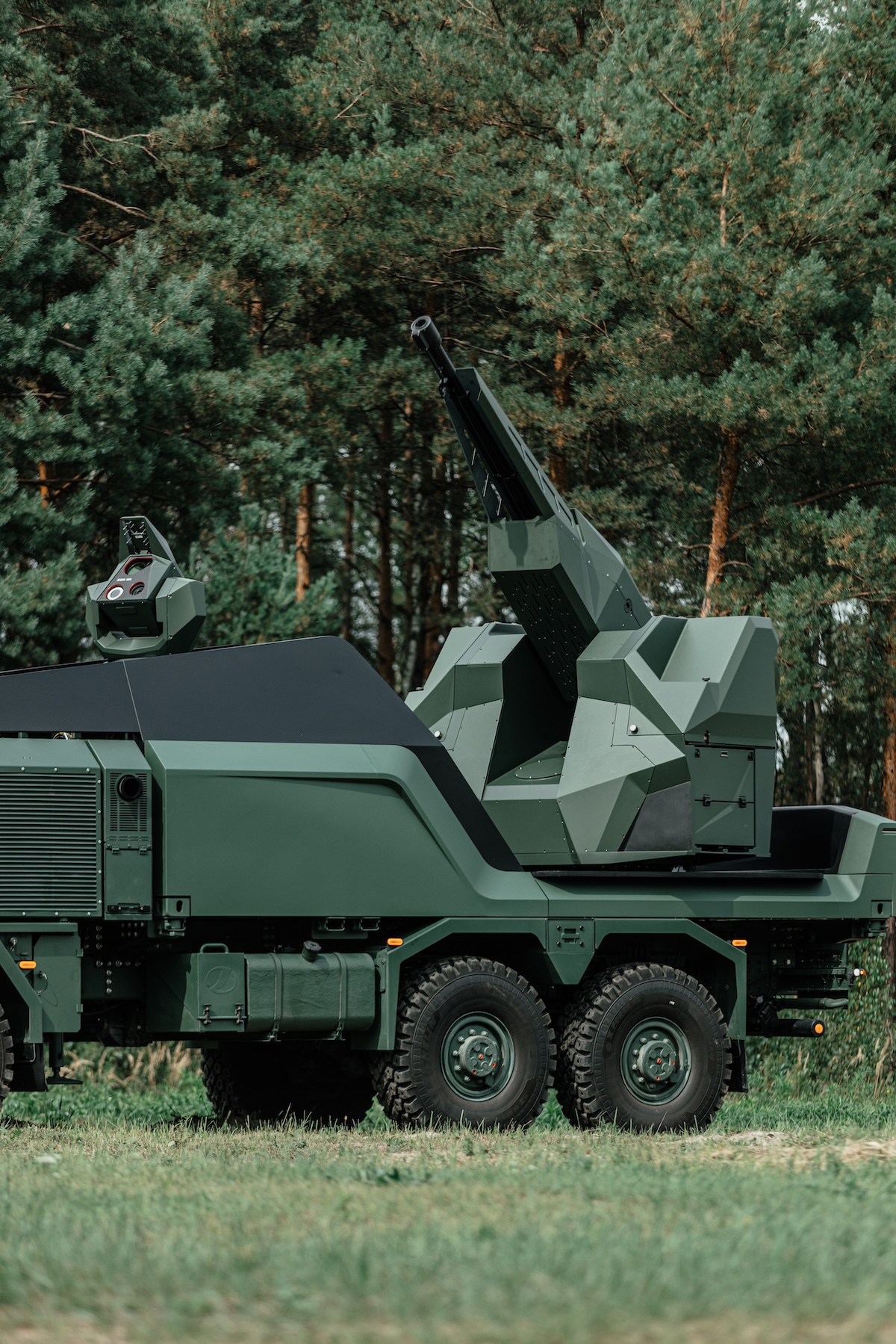

Jelcz SA-35mm

AM-35

Reduced in size and weight, carbon fiber technology providing the ability to operate in autonomous mode with its own remote-control console or in integration with a combat management system (CMS).

ZGS-35

An IR thermal imaging camera, a daylight camera, a high repetition laser rangefinder, a video tracker as well as a short-range interrogator ensure the accuracy in dynamic object tracking.

FCS

Fire control system electronics and power supply system.

Technical data

AM-35mm

Calibre35mm
Rate of fire550 rounds /min
Weight without ammunition3300 kg
Ammunition feeding systemTwo-sided, chained
Magazines capacity2 x 100 rounds
Operation range in Elevation-10° to 85°
Operation range in AzimuthN x 360°
N x 360°5000m/3500m/3000m

ZGS-35

Operation range in Elevation ZGS- 10° to 85°
Operation range in Azymuth ZGSN x 360°
Weight145 kg
Range read-out limitsMin. 200 m/ max. 30 000m
Ranging rate30 Hz
Laser safety classification1M
